Save Space and Stay Cool with a Wall Mount Air Handler

Tired of bulky heating and cooling systems taking up room in your house? Looking for an easy, efficient way to stay comfortable year-round? A wall mount air handler might be exactly what you need. This sleek solution not only controls your indoor climate but also saves valuable floor space. Whether it’s for your bedroom, office, or an add-on room, it’s one of the best HVAC upgrades you can make today.

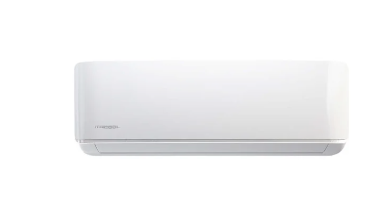

What Is a Wall Mount Air Handler?

A wall mount air handler is an indoor component of a ductless mini-split HVAC system. It controls and circulates air throughout a specific room. Rather than using ducts like traditional systems, this unit operates independently, making it great for focused temperature control.

It’s installed high up on a wall and linked to an outdoor compressor via refrigerant lines. The indoor unit pulls in warm or cool air, conditions it, and pushes it back into the room. This makes it ideal for people looking for zoned comfort without altering their home structure.

With rising energy costs and the need for space-saving solutions, wall-mounted air handlers are now a top choice for many homeowners and businesses.

Why Choose a Wall Mount Air Handler?

1. Saves Space

Wall-mounted systems free up your floors for furniture or décor. They fit snugly on a wall, making them perfect for small rooms or apartments. You won’t need to make room for radiators, floor vents, or window units.

2. Easy Installation

Most units require only a 3-inch hole in the wall. Unlike central HVAC, there's no need for ductwork or large-scale modifications. The job is usually done in a day, with minimal mess or disturbance.

3. Quiet Operation

They run quietly, usually at 20-40 decibels, which is quieter than a typical conversation. You won’t be disturbed by humming, rattling, or clunking noises like traditional systems often make.

4. Zoned Comfort

Each room can have its temperature setting. This makes them ideal for multi-family homes, offices, or places where people have different temperature preferences. You only use energy in rooms that are occupied.

5. Energy Efficient

They use inverter technology, which adjusts power levels as needed. This lowers energy use, saves money, and reduces wear on the unit. You'll likely see the difference in your monthly utility bills.

How Does It Work?

The system uses a split design—an outdoor condenser and an indoor handler. These are connected by refrigerant lines and communication cables. The wall-mounted unit pulls in room air using a quiet fan. That air is cooled or heated using a refrigerant coil, then sent back out evenly into the room.

You control the settings with a remote or a wall-mounted panel. Many models also offer smartphone apps or Wi-Fi compatibility. Some units detect human presence and adjust airflow automatically to save energy and increase comfort.

Common Applications

Wall-mounted air handlers are flexible and fit a variety of use cases:

• Bedrooms: Quiet and controlled, perfect for restful sleep.
• Living Rooms: Efficient for large open spaces used daily.
• Home Offices: Keep you focused with clean, comfortable air.
• Garages: Convert garages into usable living or working spaces.
• Commercial Offices: Offers personal comfort for employees.

They’re great for retrofits, older homes, or any building without existing ductwork. Add comfort without sacrificing style or space.

Installation Tips

1. Pick the Right Spot

Mount the unit high on an interior wall with good air circulation. Avoid spots near windows, doors, or ceiling fans that could interfere with airflow or temperature readings.

2. Check Wall Strength

Make sure the wall can handle the unit's weight. If needed, reinforce with additional brackets. Installing into wooden studs or concrete is ideal.

3. Allow Clearance

Leave at least 6 inches above and around the unit. This ensures proper airflow and allows easy access for cleaning or servicing.

4. Hire a Professional

Installation involves electrical wiring and refrigerant handling. Certified HVAC professionals ensure the system is safe, leak-free, and operates at peak efficiency. Avoid DIY unless you're fully qualified.

Maintenance Guidelines

Keeping your system in top shape requires a bit of care, but it’s simple:

• Clean Filters Monthly: Clogged filters reduce airflow and can lead to higher energy use or breakdowns. Remove, rinse, and dry them before reinstalling.
• Wipe Down the Unit: Dust can collect on the unit’s exterior. Use a dry or slightly damp cloth to clean it weekly.
• Check for Leaks: Inspect the drainage and refrigerant lines occasionally for moisture, mold, or refrigerant smells.
• Annual Professional Service: Technicians can clean coils, test refrigerant levels, and check for hidden issues. This prevents costly repairs down the line.

Regular maintenance not only extends the unit’s life but also keeps your indoor air clean and safe.

How It Compares to Other Systems

Feature

Wall Mount Air Handler

Central HVAC

Window Units

Ducts Needed

No

Yes

No

Room Control

Individual

One setting

One room

Installation Cost

Low to Medium

High

Low

Energy Use

Low

Medium

High

Noise

Low

Medium

High

Lifespan

10–15 years

15–20 years

5–10 years

Appearance

Sleek, Modern

Hidden

Bulky

A wall mount air handler offers more flexibility and personalization. While central HVAC is good for whole-home coverage, wall units give you better control over usage and bills.

Pros and Cons

Pros

• Space-saving design
• Efficient energy use
• No ductwork needed
• Quieter than most alternatives
• Remote or smart control features

Cons

• Higher upfront cost than window units
• Less suitable for very large open spaces unless paired with multiple units
• Needs visible wall space

Still, the benefits far outweigh the limitations, especially for modern lifestyles.

Buying Tips

If you’re planning to purchase a wall mount air handler, here’s what to consider:

1. Size Matters

Check your room size in square feet. Choose a unit with the right BTU rating to match the space.

2. Go for Inverter Technology

This saves power by running the unit only as much as needed. It avoids sudden starts and stops, improving longevity.

3. Prioritize Low Noise Levels

Look for models under 40 decibels. A quieter system improves sleep, focus, and daily comfort.

4. Smart Controls

Models with mobile app control or Wi-Fi features offer added convenience. You can adjust settings from anywhere.

5. Brand Reputation and Warranty

Stick with reliable manufacturers. Look for at least a 5-year compressor warranty and strong customer support.

6. Energy Ratings

Always check the SEER rating (Seasonal Energy Efficiency Ratio). A higher SEER means better energy savings.

Frequently Asked Questions

Q1: Can I install a wall mount air handler myself?

While possible, professional installation is strongly recommended for best results.

Q2: Are these units suitable for cold climates?

Yes, many models offer heating and work well in colder temperatures.

Q3: How long does a wall mount air handler last?

With regular maintenance, they can last 10–15 years.

Q4: Do wall mount units filter the air?

Yes, most come with air filters that trap dust, pollen, and other particles.

Final Thoughts

A wall mount air handler is a smart solution for anyone needing flexible, room-by-room comfort. It fits into modern homes without the mess or cost of ducted systems. With its quiet performance, energy efficiency, and clean design, it checks all the boxes for today’s home or office.

Take control of your comfort today, install a wall mount air handler, and enjoy a cleaner, quieter, and more energy-efficient living environment all year long.
